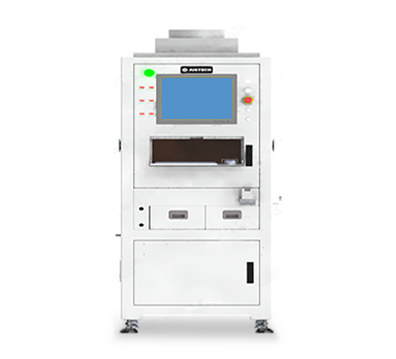

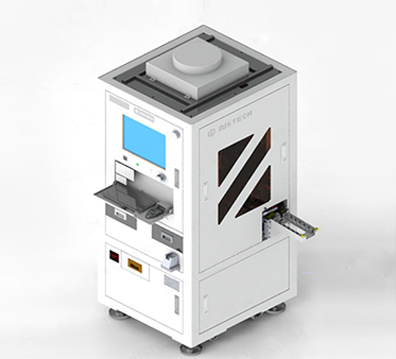

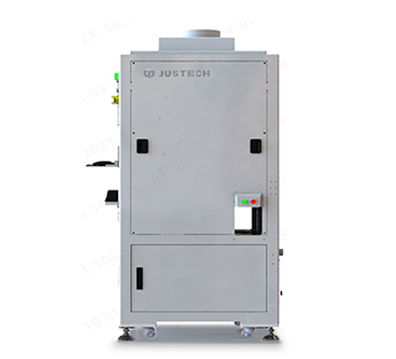

Place HSG on conveyor 3 after the equipment is electrified and aerated, and lift HSG to the position to be assembled when it reaches the middle of the conveyor. At the same time, robot draws in the CG, then assemble the CG in the HSG, maintain the pressure, and the assembly is completed.
Rated Voltage:220V 50HZ
Equipment Weight:750KG
Equipment Dimension:750mm*800mm*2000mm
Rated Power:1.0KVA
Gas Supply Pressure:0.5~0.7Mpa
1.Use visual positioning technology of CCD together with robot system for high accuracy and high efficiency on product assembly;
2.Force-Controlled Assembly is used in robot system for high product yield;
3.After assembly, maintain the pressure of the products for good fit of the phone screen and the middle frame.
We can offer automated production lines through combineing this machine with other individual units freely according to customer requirements.
